Separated Geometry CW Lasers – SPM / SPMB / SPMC
SPM Series | Compact CW Laser Modules with Separated Geometry
The SPM Series represents Power Technology’s most compact continuous-wave laser platform, engineered for environments where precision optics and mechanical flexibility must coexist. By separating the laser head from its driver electronics, the SPM family allows unmatched mounting freedom without compromising performance, stability, or beam quality.
Designed around the same rugged architecture as our PM series, the SPM’s separated-geometry design allows integrators to position the optical head in tight or thermally sensitive locations while keeping the driver remote. This configuration minimizes mechanical strain and heat load at the point of emission.
Available in three head sizes — SPM (12.7 mm), SPMB (7.0 mm), and SPMC (5.8 mm) — the series delivers stable optical output from 375 nm to 1600 nm with sub-0.5 % noise, high polarization purity, and user-adjustable focus.
Engineered for Compact Integration
Separated optical head and remote driver for maximum mounting flexibility
Available in three head sizes:
- SPM (12.7 mm) – supports 5.6 mm & 9 mm laser diodes
- SPMB (7.0 mm) – supports 5.6 mm diodes
- SPMC (5.8 mm) – supports 5.6 mm diodes (smallest PTI head option)
- Operating voltage 3.3–9 V DC (driver-dependent)
- Low noise < 0.5 % RMS (10 Hz–5 MHz)
- Power stability ± 3 % over temperature
- User-focusable glass aspheric optics
- Linear polarization (> 100:1 typical)
- Automatic Power Control (APC) or Constant Current (CC) regulation
- Rugged OEM-grade construction for continuous operation
| Product Name | Wavelengths Offered | Operating Modes | Output Power (Maximum) | Operating Voltages (Typical) | Operating Current (Maximum) | Operating Temperature (Maximum) | Laser Safety Class | Physical Dimensions | ||
|---|---|---|---|---|---|---|---|---|---|---|

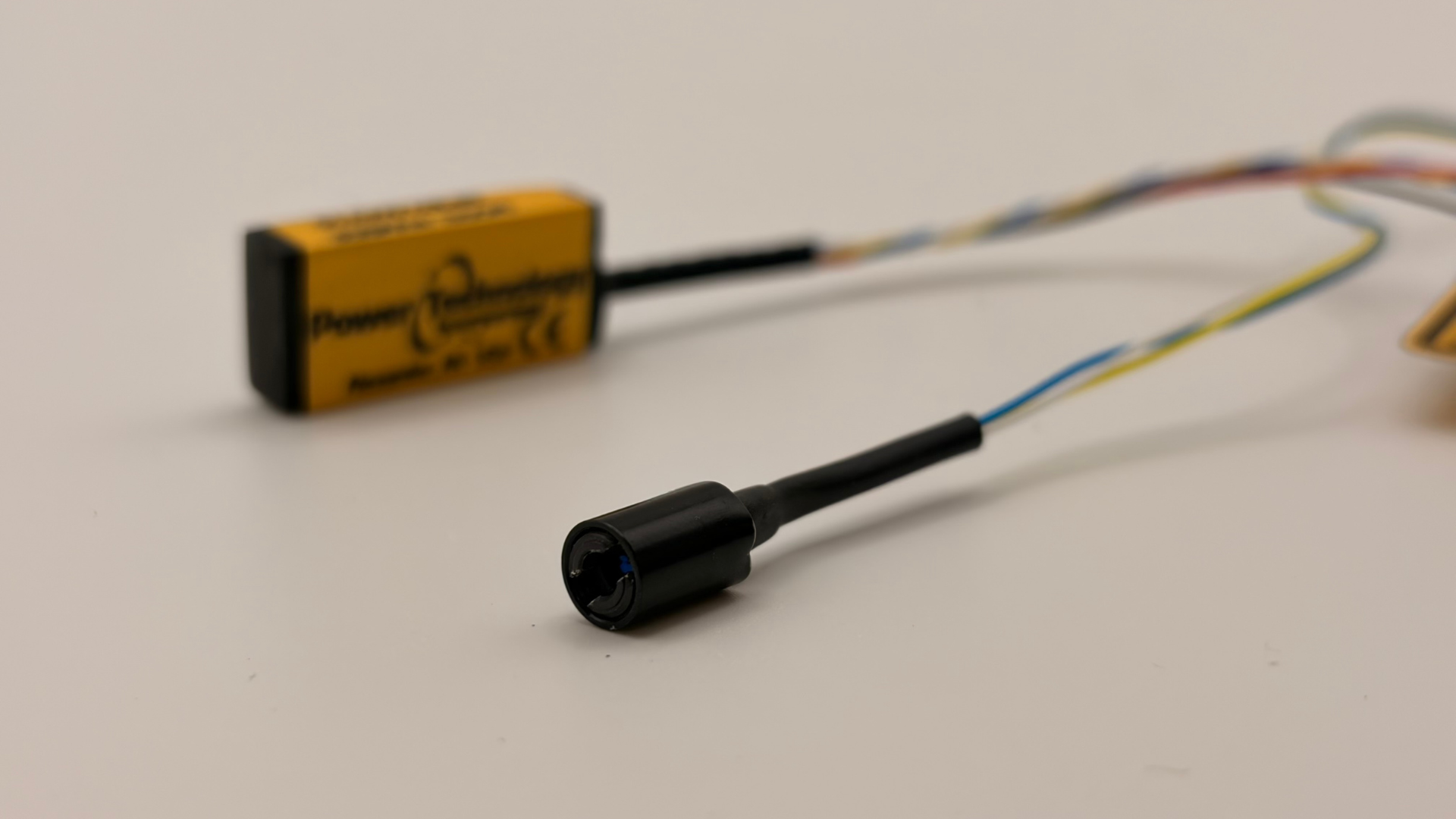

 | SPMC Platform | Blue/Green, Red/IR, SWIR | CW | >25 mW | 3.3 VDC, 5 VDC | >100 mA | 40 C Temperature Operation | Class 1, Class 2, Class 3R, Class 3B | 5.8 mm Diameter | |
 | SPMB Platform | Blue/Green, Red/IR, SWIR | CW | >25 mW | 3.3 VDC, 5 VDC | >100 mA | 40 C Temperature Operation | Class 1, Class 2, Class 3R, Class 3B | 7.0 mm Diameter | |

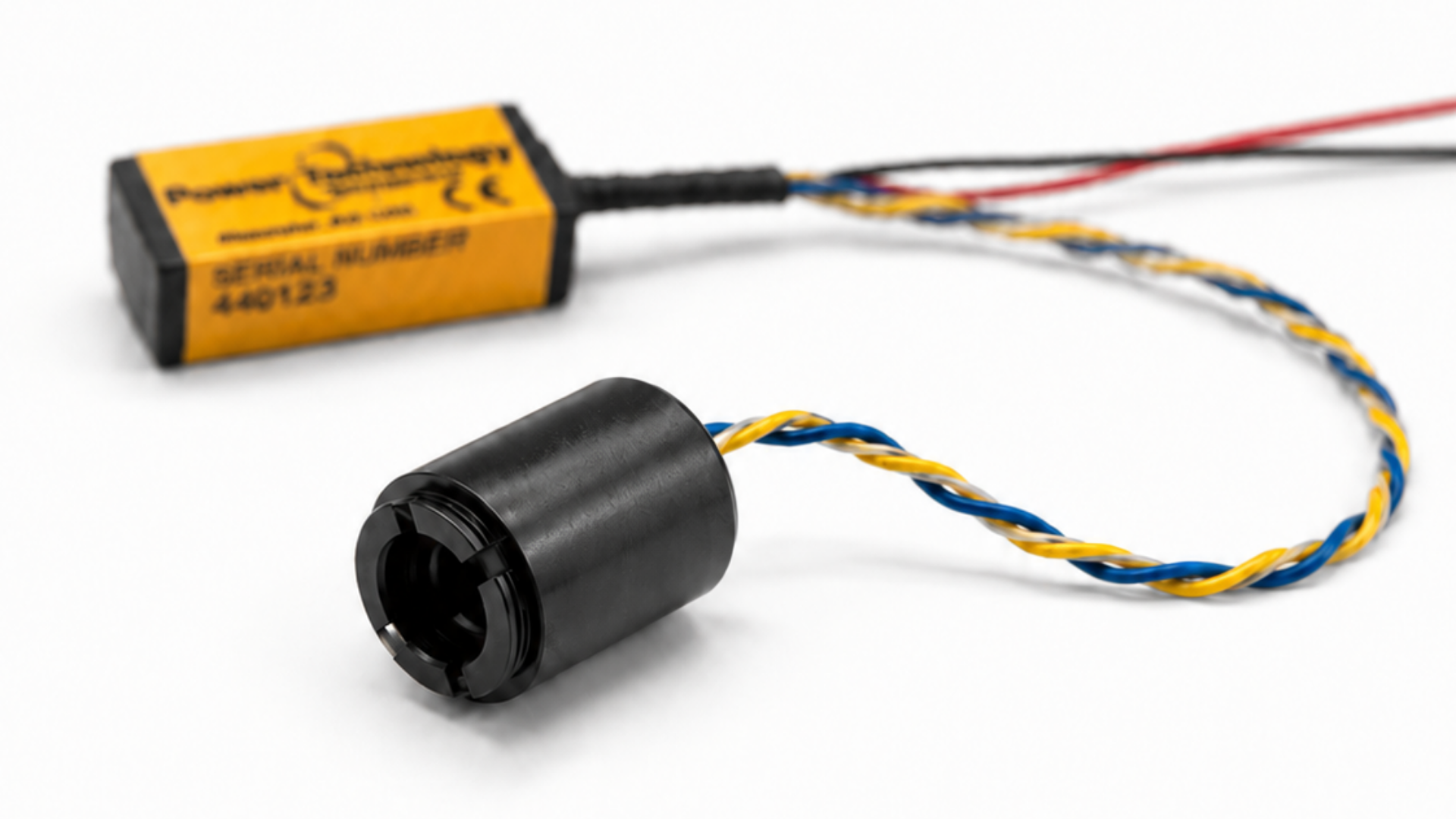

| SPM Platform | Blue/Green, Red/IR, SWIR | CW | >100 mW | 3.3 VDC, 5 VDC, 8 VDC | >200 mA | 40 C Temperature Operation | Class 1, Class 2, Class 3R, Class 3B | 12.7 mm Diameter |
Each SPM configuration is paired with a compatible Power Technology LDP driver module:
LDP-201: 150 mA max, APC or CC operation, supports both N- and P-type diodes
LDP-214: 120 mA max, optimized for N-type diodes with monitor photodiode feedback
LDP-234: 120 mA max, supports P-type diodes and mixed control modes
| Product Name | Max Operating Current | Operating Current Units | Operating Voltage | Operating Voltage Units | Price | hf:att:pa_maximum-current-ma | hf:att:pa_operating-voltage | ||
|---|---|---|---|---|---|---|---|---|---|
 | LDP-359 | 250 | mA | 4.5 – 9.0 | VDC | Contact Us | 4-5-9-0 | ||
| LDP-201 | 150 | mA | 3.3 – 9.0 | VDC | Contact Us | 160 | 3-3-9-0 | |
| LDP-234 | 120 | mA | 3.3 – 9.0 | VDC | Contact Us | 3-3-9-0 | ||
| LDP-214 | mA | 3.3-9 | VDC | Contact Us | 3-3-9 |
