Description

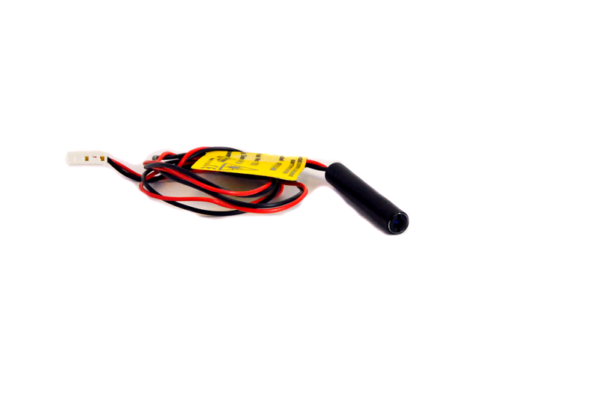

650 nm, 2 mW, 12.6 mm diameter, TTL modulated laser diode module.
The PL Series laser diode modules satisfy client reguests for small diameter package sizes with TTL modulation up to 10 kHZ. The PLB (8mm diameter) and PLG (10 mm diameter) and PLA (12.6 mm diameter) feature standard wavelengths between 635 nm and 850 nm with output powers ranging from 1 mW to 10 mW. Each module comes pre-collimated with user adjustable focusing lens.
If a small package size is not required consider the standard PM laser module.
Additional information
| Wavelength (nm) | 650 |
|---|---|
| Color | Red |
| Power (in mW) | 2 |
| Beam Size | 0.80 x 2.58 |
| Beam Divergence (1/e2) | <1.2 |
| Spatial Mode | TEMoo |
| User Focusable | Yes |
| Input Voltage | 5 |
| Operating Voltage (VDC) | 5 |
| Max Operating Current (mA) | 15 |
| Modulation Signal | Digital |
| Max Modulation Rate Digital | 0.01 |
| Module Dimensions (In / mm) | 50.8 mm x 12.6 mm |
| Certifications | CDRH & IEC Laser Safety, RoHS |
| Operating Mode | CW |
| Product Weight | 0.125 |
| Laser Safety Class | 2 |
| Warranty | 1 Year |
| Temperature | 10 – 35 |
PLA 02(650-5)
